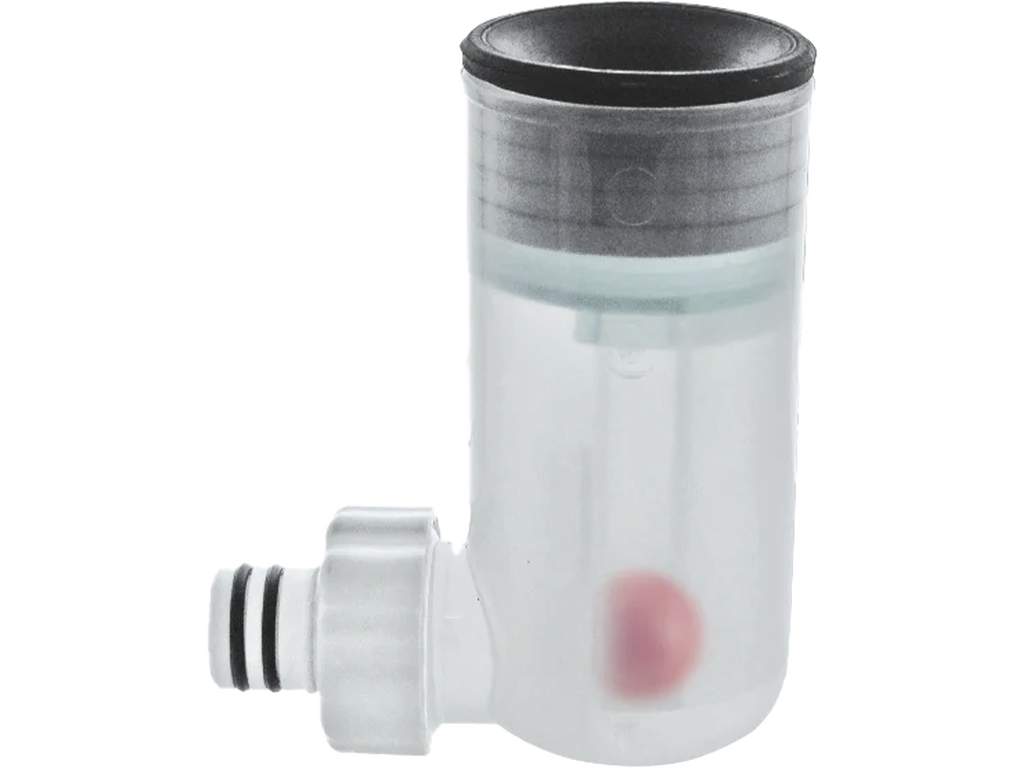

Sifón en seco
Dry siphon, designed to prevent odor returns and ensure efficient drainage in aerothermal and additional air installations.
Regular price
€0,00
I.V.A. y otros impuestos no incluídos
Couldn't load pickup availability
The DOUBLE siphon is a device designed for drainage systems, with specific features that make it practical and efficient.Below, its components and main characteristics are described in continuous text: The siphon includes an inspectable ball cap, a technical gasket, a sealing O-ring and a box with lid and screws. Among its main facesCharacteristics, it has a 70 mm hydraulic closure column, an upper water inlet junction made of rubber, and removable internal components that facilitate inspection and periodic cleaning. His body is designed with two entrances and doS outlets, both horizontal and vertical, which allows its installation in a flexible way, either on the right or on the left, regardless of the placement. The drain outlet has a diameter of 18/20 mm, compatible with corrug tubes(Articles 9899-050/052-01). It is important to note that the siphon works only in the vertical direction, with the upper water inlet splice placed at the top. In addition, it has a flow rate of 100 liters per hour, which ensuresUra a flow suitable for domestic or commercial drainage systems.
